we have discussed how an OS might go about managing it’s free memory, but what about when the size of all programs exceeds RAM?
the concept of “virtual memory” was mentioned briefly earlier, and thats what we shall delve into now.
we need to find a way to run multiple programs, without the need to swap the programs entire memory image. swapping out and in a 1GB app can take a around a second and this can quickly build up
initially “overlays” were used, whereby the program would spend their time splitting up the application into chunks that could be independently swapped in and out by the OS. (this was done either in place of our above the other chunks)
programmers were very rarely good at creating good “overlays” and the good not be bothered either, meaning this practice fell out of use rather quickly
in virtual memory, each address space is further split up into “pages”
not all pages must be in RAM for a program to execute.
mapping from address space -> physical address must be done when it is required
if a piece of memory referenced is not in RAM, the OS will fetch it from disk and re-run the instructions
the implementation of virtual memory that we are gonna be learning is known as “paging”

paging

when addresses are mentioned, instead of going straight to memory, they first go to the MMU. this is a small piece of hardware inside of the CPU that deals with managing. it’s here the virtual addresses are mapped.
the chunks that virtual memory is divided into are known as “page frames”
they range in size from 512kb to multiple GBs
transfers of disk <-> RAM are always done in whole pages.
if the MMU tries to access data not in RAM it generates a “page fault”
the OS will then write a relatively un-used page in RAM to DISK, (if it has been modified). then writes the page required to RAM. the CPU then changes its internal map and restarts the failed instruction
the map must reflect that the page “evicted” is no longer present by changing it’s present/absent bit
virtual addresses are split into a couple of parts
- initial page number (high order bits)
- offset (low-order bits)
the number of bits allocated to the page number implies the page size (it can imply the division of memory)
page number is an index to the page table, if an entry is present then the higher order bits are replaced the the page frame number, this forms its physical address.
as you can probably tell the purpose of the page table is to map the virtual, to the physical.

page table entries

page table structure differs between operating systems, but you can generally expect to find the following components in some order or another.

caching

referenced

modified

protection

modified/absent

page frame number

32 bits are commonly used
present/absent bit tells us if the frame is currently in memory, 0 will trigger a page fault if access is attempted
protection bits will describe the access permissions (r, x, w are the common ones)
referenced and modified bits track the the usage of the frame for when page faults occur
- “dirty” describes if a frame was modified and needs to be written back into disk, if its selected for eviction
- “clean” means that it can just be overwritten
- these two different classes are used for the page replacement algorithms, these will covered in lots of detail later :)
page faults are managed with software, not hardware. similarly, when a page fault occurs, it’s the OS that picks it up, not lower level sub systems

implementation

there are 2 main considerations for implementing page faults
- the mapping of virtual —> physical must be very fast
- if the virtual address space is large, the page table will also be large
any reference to any address must be translated
- even arguments for instructions
if an instruction takes 1nsec, translation must take around ≈0.2 nsecs with page size of 4kb

with a page size of 4kb and a 32 but address space, the table with require around 1,000,000 entries

when you remember that each process has it’s own page table, this is quite a lot of storage required for a page table.
one way to go about implementing, for each entry in the page table it has a corresponding hardware register. it’s simple and requires no extra mapping as the page table is no longer kept in memory.
however, swapping out the values of these registers when a context switch occurs is insanely expensive at large page table sizes
in contrast we could keep all tables in memory, only keeping a reference to the location of the table in hardware. this would make context switching very fast but translations would be expensive (this is the way we do it tho)

speeding up paging

to speed up paging to improve handling of large page tables mostly starts with the assumption that the page table is already in memory.
we can equip computers with a small hardware array of registers (usually no more then 256) this contains fields that have a 1-1 correspondence with the page table. another bit is present which indicated if the entry is in use or not
now, when an address is referenced and presented to the MMU for translation, first the table is checked (this table is known as the TLB or translation lookaside buffer) to see if an entry with the matching virtual table number is present and because of special hardware, this lookup can be done simultaneously.
if the MMU detects a TLB miss, it will do a normal page table lookup
once the page table entry is found, the OS will evict one of the entries in the TLB and put the new page there in place.
that way if the page is referenced again it only needs to go the the TLB
many RISC systems (and some others) do all page management in software. this offloading of responsibility free’s up chip space and although translation because a little slower, it allows for greater improvements in performance elsewhere. it also allows for an increase in chip simplicity.
handling of TLB misses must be handled very quick, as they occur far more often then a page fault.
a number of strats are done to try and reduce the number of TLB faults. one is “intuition”. where, for instance, if a server is running on a machine. and the code that manages an incoming request is ran, it’s likely that the code that generates a response will soon be ran, so those pages are loaded in advance
sometimes the pages containing the page table may not be in memory, leading to TLB and page faults happening in additional to the memory lookup. to fix this systems will very often keep a large software cache (around 4kbs) maintaining pages that are always kept in the TLB. this substantially reduces TLB misses. the cache is also kept in a fixed location in memory
when systems are running software managed TLBs we can break the misses into a number of different categories

name of miss	explanation
soft miss	when the address is not in the TLB, but is in memory. the TLB must be updated. no disk I/O. around 2nsecs to fix
hard miss	when a page is not in the TLB or memory, this requires a search of the page table. easily a million times slower to fix then a soft miss
minor page fault	a page may not be in the process page table, but could still be in memory due to a another process bringing it in (i.e a shared library)
major page fault	when the page table is not in memory at all
segmentation	if a process tries to access invalid memory addresses. the OS will kill this process with a “segmentation fault” signal

when we need to do a search of the page table it is known as a page table walk

biiiiiiig memories

if the span of the virtual addresses is really big, then we may need to split the page table up into multiple tables.
we no longer have the entire page table in memory at once
this approach known as “multilevel page tables” means that the higher order page table bits are know split into a number of segments indidicating the index for each depth of page table

PT1 offset

PT2 offset

offset

MORE READING REQUIRED ON MULTILEVEL PAGE TABLES
an alternative to page tables and their ever increasing hierarchy is the “inverted page table”. in this design, pioneered by intel. tables have an entry for each page in real, physical memory. this saves considerable amounts of space, but the translation becomes way more complex.
we can still speed it up with the use of TLBs
TLB miss is an expensive operation tho
because of how much for space efficient this method is, most 64bit systems use inverted page tables

page replacement algorithms

when a page fault occurs, the OS must choose which table to evict.
if the page to be evicted has been modified, we also need to write it back to disk
we could just pick a page at random to evict, but studies have shown that picking the lesser used pages leads to better perfs (as less faults end up occurring over time)
we can envision a perfect algorithm for page replacement, even if it’s impossible to implement in the real world. it is still useful to inform and compare against our algorithms later
the moment a page fault occurs, there exists a set of pages in memory and all of these pages are going to be references at some point later on in execution.
if we pick the page that will not be referenced for the longest amount of clock cycles and use that one, it would result in optimal performance.
since we cannot know in advance what pages are going to be referenced, it not actually possible to implement this algorithm
- we could record the pages used in a sandbox during normal execution, then use that to figure out what the optimal algorithm should look like, and this is useful for comparison

list of algorithms
optimal algorithm
NRU (not recently used)
FIFO (first in, first out)
second chance
LRU (least recently used)
NFU (not frequently used)
aging
clock
working set
WS clock

we shall now delve into lots of detail on these!

NRU

as mentioned earlier, the page table contains bits R & M - when a process is started, all of it’s pages are marked as not in memory.
the system loads the page and sets the R bit. it is loaded in “read only mode”
if the process subsequently tries to modify the page, another type of fault is generated and the OS will change the M bit and change the page mode to “read/write”.
we can seperate the pages with various states of R/M bits into 4 classes
on each clock interrupt, the R bit is cleared. this way we know which pages have not recently been read (as whenever a page is referenced, the page table sets it’s R bit)

Class Type	R bit	M bit	description
class 0	0	0	not references, or modified
class 1	0	1	although it might seem impossible, this happens when a page has been modified, but not referenced for long enough that it’s R bit has been cleared. The OS will never clear the M bit of the page, since it’s needed so that it can be written back to disk if it is evicted
class 2	1	0	referenced but not modified
class 3	1	1	modified and referenced

NRU works by selecting at random, a page from the lowest class available
although not wholely optimal, this algo is trivial to implement and understand, its considered “good enough”

first in first out

the OS maintains a list of all pages most recently added
at the tail, the newest, and getting older and older the closer you get to the head
when a page fault happens the head is evicted and the new page becomes the tail of the list
it makes the fatal assumption that the oldest page is the least used one, this is often false
FIFO is rarely used as described in this section

second chance

this algorithm is a slight modification to FIFO, allowing it to give the oldest page (that might be heavily used) another chance.
on page fault, inspect the R bit of the oldest page, if it 1 clear it, and move it to the tail of the list. then repeat of on the next item.
if all pages have been referenced, then second chance descends into regular FIFO (after 1 full iteration of the linked list)

clock page replacement

instead of keeping the program in a simple linked list, this algo uses a circular linked list data structure (“the clock”)
the “hand” points to the oldest page in the list
on page fault, the page in place of the hand is inspected. if the R bit = 1 , its cleared and the hand is advances. this repeats until a page with R=0 is found.
this page is then evicted and the new page is inserted in place of the old one

least recently used

we can look at our optimal algo in a different light, heavily used pages are likely to stay in use. whereas pages that have not been accessed for some time, will likely stay un-accessed
unlike the “optimal” algo, this is possible to implement, but it does not come computationally cheap.
we must keep a linked list with the most recently used at the top, and the least at the bottom.
- on every memory reference, this list needs to be updated (bit pricey init)
- when we update the page we need to delete from current place, and attach it to top. sometimes there a multiple memory references per instruction. so this becomes exponentially inefficient fast
there are ways to implement this a bit better if we equip the system with a 64bit counter that gets increased on each instruction. when a page is references we set the value of this counter to a new field. so, when a page fault occurs, the page with the lowest counter value is therefor the oldest.
while technically feasable, not many systems contain this hardware counter needed. so a software implementation needs to be thought of…

not frequently used

each entry in page table is given a software counter, and at every clock interrupt the value of the respective R bit is added to the counter. the entry with the lowest counter value will be evicted
the fatal error with this is that older, heavily used pages will have priority over the more recent additions to the page table. if a page has been in use for a very long time, but is no longer being referenced. it’s unlikely to be evicted anytime soon, as it’s counter value is large

aging

to fix this, we need to have a way of weighting the more recent pages
there are two main differences in aging compared to NFU
- the clock value is shifted to the right by 1 bit before the counter is increased (this halves it’s decimal value)
- the R bit is now added to the left most bit instead of the right

working set page replacement

when a process begins, it will likely spit out many page faults as its global variables, stack and first few interactions are still being brought in.
after a while a process will have it’s most commonly used pages loaded in and the number of page faults will have markedly decreased
this is called ‘demand paging’ as pages are loaded in when they are needed, not primitively.
most processes exhibit a pattern of behavior known as ‘locality of reference’ meaning that during execution a process will center around a small number of pages, and only occasionally have to request a different one from further afield.
the set of pages that a process is currently using is known as it’s “working set”
if the entirety of the set is in memory then a process will generate 0 page faults
the working set model is when a system keeps track of a processes working set and ensures that is is in memory before the process runs. it greatly reduces the number of page faults thrown at the beginning of process execution
the strat of loading a processes pages before it begins is known as “pre paging”
in it’s simplest form, working set replacement is when “if a page fault occurs, evict a page not in the working set”
the difficulty becomes calculating the contents of the working set
if we use the approximation of execution time of when the page was referenced, then we can define the working set as “all pages referenced in the last t amount of time”
on every page fault, the page table is scanned for an eviction candidate
the R bit is examined. if 1, the current virtual time is written, given in this case the R bit is 1 is is clearly in the working set.
if R is 0, check to see if the time of last use is less then t. if its greater, then this page is not in the working set and can be evicted
if all pages are in the working set, then the page with the oldest last used counter is evicted.
in the absolute worst case where all pages are referenced, one is picked at random

WSclock

the main issue with the standard working set is that is that on fault, the entire page table is scanned.
WS clock merges the efficiency of clock with the theoretical greatness of working set

page fault handling

on the event of a page fault, the following steps are carried out:

hardware traps the kernel, program counter is saved into the stack
an assembly routine is started it saves all the registers and volatile information
the OS is made aware of fault, and must figure out which virtual page to load, this can be done using hardware registers (preferred method). or the OS can parse the last instruction called to figure out where the fault occurred.
once the virtual address is known, the OS will check if its a valid address, if it is not valid then the OS will send a signal to the process to kill it. then, the OS will check to see if any pages frames are free, if not the page replacement algorithm is ran.
if the to-be evicted frame has been modified, it is scheduled to write to disk and another process is given control until thw write is complete
once it completes (disk interrupt signal). the page table is updated.
the faulting instruction is loaded back in, along with the rest of the CPU data. and the process is returned

backing store

we have covered in depth how pages are replaced. but how does the disk management side of paging work?
in most unix systems some form of swap partition is used- this partition does not use “files” as we are familiar with them
block numbers relative to the start of the partition are used- on system boot the partition is empty and is represented by a single chunk
on the start of the first process, a section of the partition is reserved. the size of it equal to the process core image.
this repeats for every new process and when they finish, the space is free’d
the swap partition is managed as a list of free chunks
associated with each process is the address of it’s disk address for the swap area, we keep this address in the process table
calculating where to write the page is simply virtual address offset + swap area
before the process begins we need to initialise the swap area
- we can load the entire process core image to the disk first, and page in as needed
- we could also do the opposite, load all into memory and page as needed
this does not take into account that sometime a process can increase in size, it may be better to reserve different areas for text, data and stack. so that each one can grow independently of another
one the other end of the scale, we could allocate nothing in advance, only allocating space in the event something needs to be paged out - this has a disadvantage since a page has no static position in memory, for every process a table containing the current page -> physical disk mapping must be maintained
having a fixed size swap partition is not always available
systems sometimes use a series of large files with the normal file system (windows does this)
this approach does come with 1 nice optimization since we know that a program text comes from it’s executable file, we can use this file as the swap area for the text. and as it remains present after execution, there is never any need to write it back after de-allocation
shared libraries also can work this way

segmentation

so far, the virtual memory covered contains everything a process needs. it means that if any part of the process grows the entire virtual memory must also grow
segmentation is the idea of separating a process into multiple virtual address spaces
so that areas of the process can grow and shrink independently of one another
a common example of where this is useful is a compiler where it has multiple tables that undergo vast amounts of change
- source text
- symbol table, containing variables and function names
- table for all compiler time constants
- parse tree of the program syntax
in a normal virtual memory setup, the address space would need to be constructed in such a way that these tables and data structures can easily grow

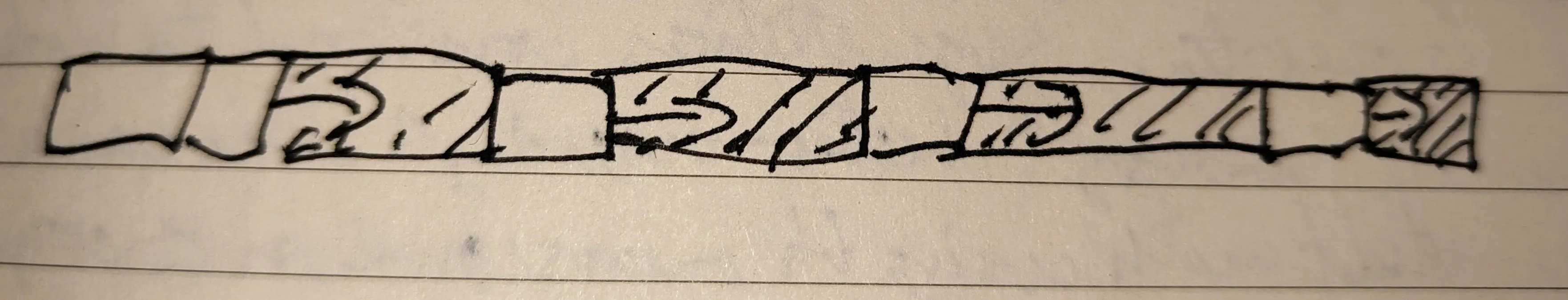

memory stack

in this case and many others, we probably want some kind of way to unburden the programmer from where the position of data structures are,. throughout the virtual address space
segments are a logical entity, means that they are a programmer instantiated object
a segment contain a procedure, a stack, collection of scalar variables, but does not usually mix types
segment lengths usually vary wildly
the handling of growing data areas is not the only thing that segments simplify, linking of shared libraries is better now, as a segment containing the library can be shared between multiple processes
implementation of segments differs in that pages are of fixed size, and segments are dynamic. this can lead to “checkerboarding” in memory, which can be dealt with using the occasional run of a compacting procedure

table of comparison

point of comparison	paging	segmentation
is programmer aware?	N	Y
how many address spaces	1	many
total address space > physical memory	Y	Y
conflicting size can easily be dealt with	N	Y
can easily share common utils between processes	N	Y

segmentation with paging

if the segment gets large it can often be tricky or even impossible to keep the entire thing in memory, so designs of the MULTICS system came up with a way to combine paging and segmentation. a few other operating systems followed suit after.
each program in multics had a segment table with one descriptor per page, this segment table would be so large, that it was even a segment and was paged
if any page of the segment was in memory, the entire segment was considered to be present.
the segment descriptor contains size. protection bits and it’s page table address. each page segment by the OS to be the same as a non-segmented page.
the same page fault algorithms

18 bits for address of page table

9 bit segment length (in terms of pages)

1 bit for page size

3 bits for protection bits

1 bit for random stuff

when a reference occurs the following steps happen:
- segment number is used to find the descriptor
- a check to see if the segment page table is in memory, if it is, it’s located. if ot a seg fault occurs.
- the page table entry for the virtual page is examined. if it’s present the the physical address is extracted and if not a page fault is triggered.
this process is very slow if done for every single references so a TLB is used. in fact the MULTICS designers were the first people to use TLB. in multics, around 16 entries are usually kept

segmentation in x86

x86 prioritized higher segment size as apposed to more segments. since a process very rarely needed more then 1000 segments
segmentation is considered obsolete in 64bit systems and is only present for backwards compatibility reasons
in 32bit it contains 2 tables. local descriptor table (LDT) and a global descriptor table (GDT). each process has it’s own LDT but there is only 1 system wide GDT
the following address scheme is used

13 bits for table index

1 bit for GDT vs LDT toggle

2 bits for privilege level

week 7 - scheduling and memory management
